Box R Lite 4K Android TV Box

High-performance 4K streaming with advanced features and connectivity options.

4K Ultra HDWi-Fi 5Bluetooth 5.0DVB-S2 Tuner
Case Studies

Key Features

📺

4K Ultra HD

Stunning 4K resolution with HDR support for exceptional picture quality

📡

Wi-Fi 5

Dual-band Wi-Fi 5 (802.11ac) for fast and reliable wireless connectivity

🔊

Dolby Audio

Immersive Dolby Audio support for enhanced sound experience

📶

DVB-S2 Tuner

Built-in satellite tuner for direct TV reception

Technical Specifications

💻Hardware Platform

  • CPU Chipset:Amlogic S905Y4
  • CPU Performance:16.5k DMIPS
  • GPU:ARM Mali-G31 MP2
  • RAM:2GB LPDDR4
  • Flash Storage:eMMC 8GB

📶Network & Connectivity

  • Wi-Fi:802.11 b/g/n/ac Wi-Fi 5
  • Ethernet:100 Mbps
  • Bluetooth:5.0
  • Tuner Type:DVB-S2

📺Video & Audio

  • Video Decoding:AV1, VP9, H.265, H.264 up to 4K@60fps
  • Video Resolution:480i/p, 576i/p, 720p, 1080i/p, 4Kx2K
  • Video Output:HDMI 2.1, HDCP 2.2
  • Audio Decoding:MP3, AAC, WMA, RM, FLAC, Ogg
  • Dolby Digital Plus:Support
  • DTS:Optional
  • Dolby Vision:Optional

🔒DRM & Security

  • Widevine:Level 1
  • PlayReady:SL3000
  • Verimatrix Ultra CAS:Optional

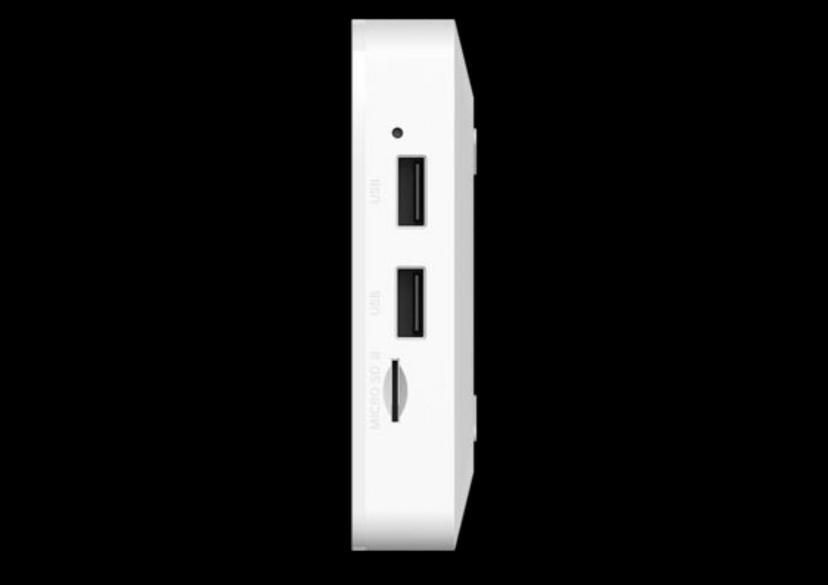

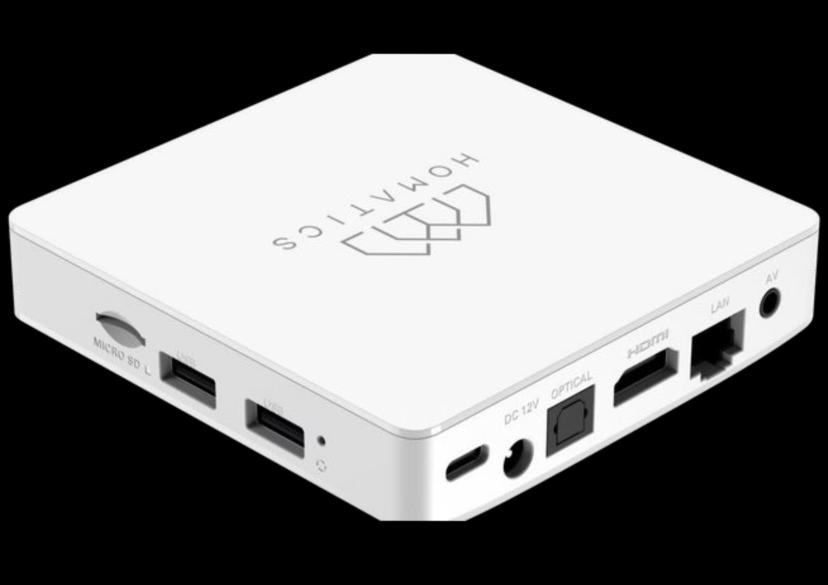

Interfaces & Ports

USB Ports

2 × USB 2.0

HDMI Output

HDMI 2.1 with HDCP 2.2

Audio Output

SPDIF Optical

AV Output

3.5mm AV interface

Network

Ethernet LAN port

Storage

Micro SD card slot

Power

DC 12V input

Control

Reset button

Case Studies

Design & Dimensions

Dimensions:96.4 × 96.4 × 22.6 mm
Weight:Less than 1kg
Color:Black
Power Supply:12.0V/1.5A Adapter
Power Consumption:Maximum 18W
Operating Temperature:0°C to 50°C

Accessories Included

  • 1 × 12.0V/1.5A Power Adapter
  • 1 × Custom Remote Control
  • 1 × Custom User Manual
  • 1 × HDMI Cable 1.5 Meter
  • 1 × AV Cable 1.5 Meter (optional)
  • 1 × Ethernet Cable 1.5 Meter (optional)
Case Studies

Remote Control Options

🔄

Optional A

Basic IR remote control with essential functions

🎮

Optional B

Enhanced remote with number buttons and additional features

📱

Optional C

Advanced Bluetooth remote with voice control capabilities

Remote Control Specifications

  • IR Support: Yes
  • Protocol: BLE 4.2
  • Battery Type: 2 × AAA 1.5V
  • Number Buttons: Optional
