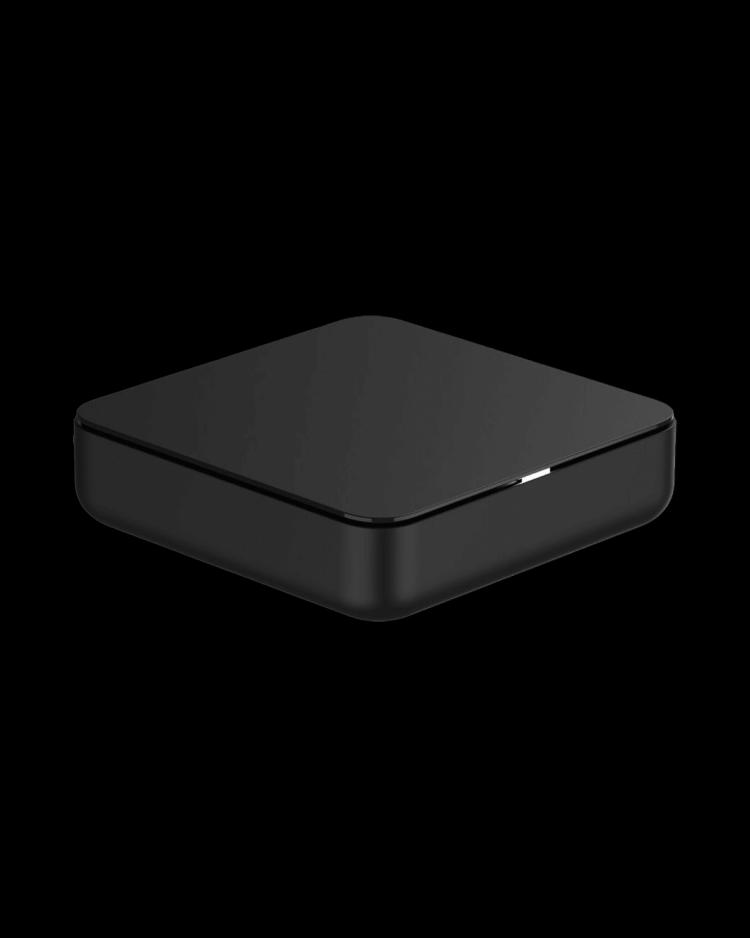

SEI700 Android TV Box

An easier way to enjoy the entertainment you love with Wi-Fi 5 and 4K streaming capabilities.

4K Ultra HDWi-Fi 5Android 14DVB-S2/C
Case Studies

Google Cast Built-in

Put your small screen on your big screen. Quickly cast photos, videos, music, and other content you love from your favorite device right to your TV.

Seamless Casting

Easily cast content from your smartphone, tablet, or computer directly to your TV

Case Studies

Processor Specifications

⚡CPU & GPU

  • CPU Chipset:S905Y5 Quad-Core ARM Cortex-A55
  • CPU Performance:20K DMIPS
  • Process Technology:12nm
  • GPU:ARM G31 MP2

🎬Video Capabilities

  • Video Decoder:4Kp75 10bit AV1, VP9 P-2, AVS2
  • H.264 Decoding:4Kp30
  • Video Output:HDMI 2.1b 4Kp60 with ALLM, QMS, VRR, QFT, SBTM, CVBS
  • HDR Support:HDR10/10+, HLG

System & Network Specifications

🤖System Requirements

  • Operating System:Android 14
  • RAM:2GB DDR4
  • Flash Storage:eMMC 8GB

📶Network Connectivity

  • Wi-Fi:802.11b/g/n/ac 2.4G/5G 2T2R Wi-Fi 5
  • Ethernet:10/100Mbps LAN
  • Bluetooth:BLE 5.0

DRM & Tuner Specifications

🔒DRM Support

  • Widevine Level:Support, Level 1
  • PlayReady:Support, SL3000

📡Tuner Specifications

  • DVB Tuner:DVB-S2, T2/C (optional)
  • Tuner Type:Rafael R835
  • Frequency Range:42~1003MHz
  • Channel Bandwidth:6MHz
  • Input Impedance:75Ω
  • Signal Input:F-Type

Interface & Connectivity

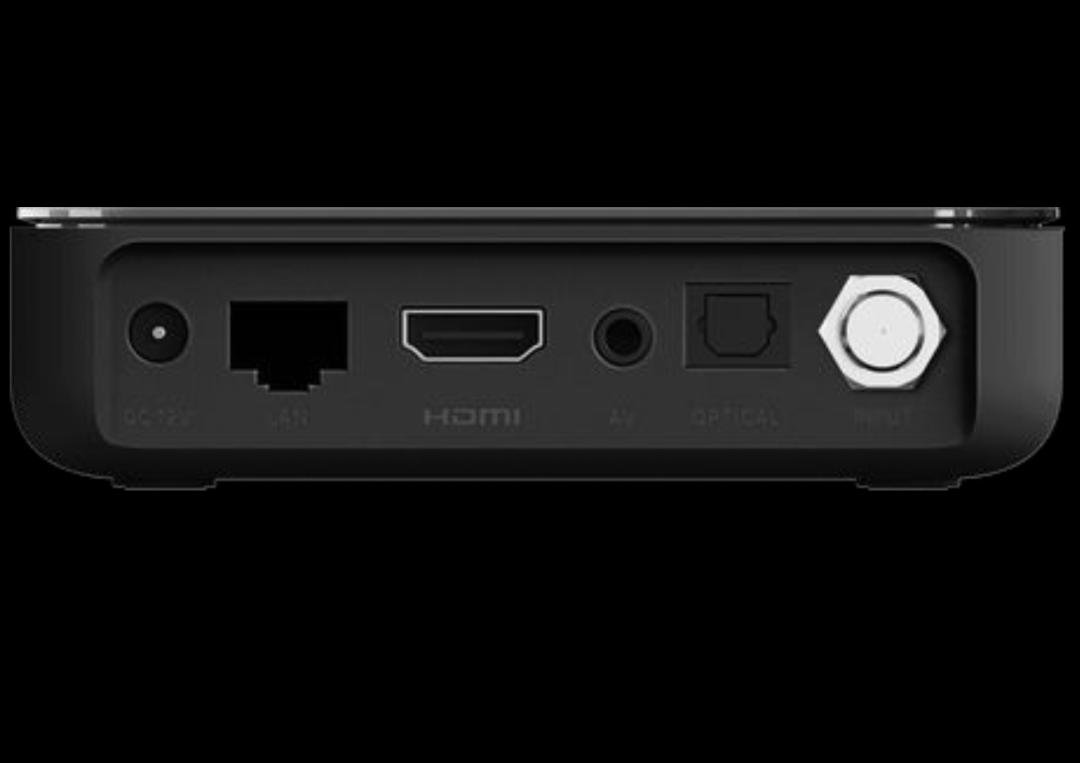

Available Ports & Interfaces

  • LED Indicator:Support (color customizable)
  • IR Control:Support
  • DC Power:12V/1A
  • LAN:10/100Mbps
  • HDMI:HDMI OUT
  • AV Output:Support
  • S/PDIF:Optical Support
  • Tuner:DVB-C Support
  • USB Ports:2 × USB 2.0
  • Reset Button:Support
Case Studies

Supported Formats

Video Formats

  • • AV1 MP-10@L5.1 up to 4Kx2K@60fps
  • • VP9 Profile-2 up to 4Kx2K@60fps
  • • H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
  • • AVS2-P2 Profile up to 4Kx2K@60fps
  • • H.264 AVC HP@L5.1 up to 4Kx2K@30fps
  • • MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
  • • WMV/VC-1 SP/MP/AP up to 1080P@60fps
  • • AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
  • • MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
  • • MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
  • • RealVideo 8/9/10 up to 1080P@60fps

Video File Formats

Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm, and *.jpg file formats

Video Resolutions

480i/p, 576i/p, 720p, 1080i/p, and 4Kx2K

Audio & Photo Formats

Audio Decoding

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Audio Modes

Mono/Stereo/Left/Right

Photo Formats

MEF, PEG, GIF, TIFF

Electrical & Environmental Specifications

Electrical Requirements

  • Line Voltage:100V to 240V AC
  • Frequency:50Hz to 60Hz
  • DC Input:12.0V/1.0A
  • Input Voltage:AC 100V-240V
  • Power Consumption:Maximum 12W
  • Power Line Length:1.5 Meter
  • Lightning Level:4KV

Environmental Requirements

  • Operating Temperature:32° to 95°F (0° to 35°C)
  • Storage Temperature:-4° to 113°F (-20° to 45°C)
  • Relative Humidity:5% to 95% noncondensing

Packaging

  • Type:Paper card packaging
  • Outline Size:Customization
  • Gift Box:Customization

Included Accessories

Box Contents

  • Power Adapter:1 × Adapter
  • TV Box:1 × Box
  • User Manual:1 × Customized User Manual
  • HDMI Cable:1 × HDMI Cable 1.5 Meter (optional)
  • AV Cable:1 × AV Cable 1.5 Meter (optional)
  • Ethernet Cable:1 × Ethernet Cable 1.5 Meter (optional)

Remote Control

  • IR Support:Yes
  • Protocol:BLE 4.2
  • Battery Type:2 × AAA 1.5V

Physical Dimensions

Device Size:114 × 114 × 28 mm
